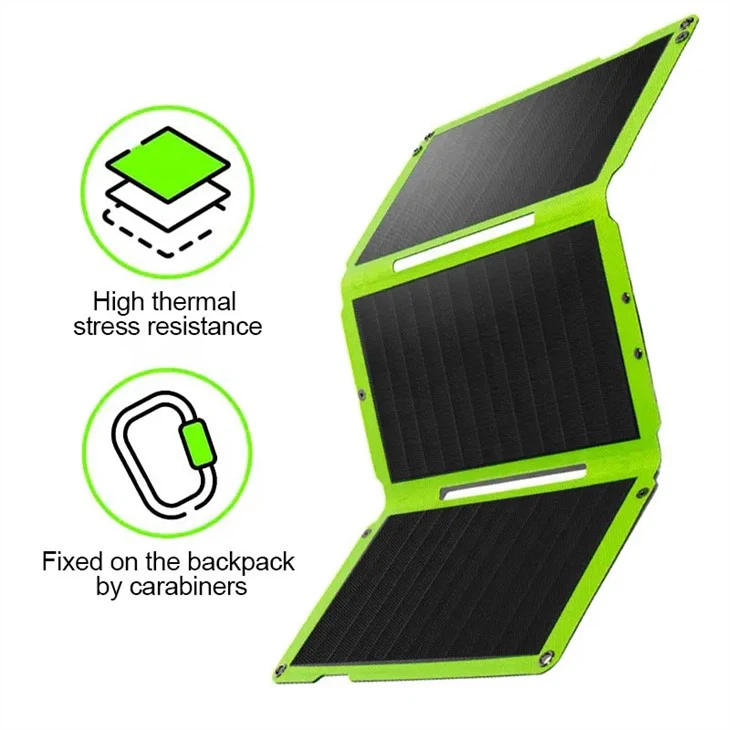

Outdoor Foldable Solar Panel

Model: TS-FO-30-002
Maximum Power : 30W
Solar Cell Type: ETFE Mono crystalline
Cell Efficiency: > 21%
Maximum Operating Current (Imp): 1.32A
Maximum Power Voltage (Vmp): 19.70V
Open Circuit Voltage (Voc): 23.82V
Output Tolerance Wattage: ±3%
Output:
USB Output: 5V/3.1A;9V/2A;12V/1.5A Max: PD18W
Type-C Output: 5V/2.4A;9V/2A;12V/1.5A Max: PD18W
Fast Charging Protocol:
2 * USB support:
BC1.2/DCP/QC2.0/QC3.0/AFC/FCP/SFCP
Type C support:
BC1.2/QC2.0/QC3.0/FCP/AFC/SFCP/PD2.0/PD3.0
Working Temperature: -10℃ ~ 65℃
Expanded Size: 585*350*3mm
Foldable Size: 350x195x35mm
Net Weight: 1.1kg ± 5%
Certificate: CE, FCC, RoHS

Outdoor Foldable Solar Panel Description


The Outdoor Foldable Solar Panel usually consist of a solar panel, battery controller, and battery, which can be folded together to form a compact square box that is easy to carry in a backpack or handbag. Secondly, our use is also very simple, just place the device under the charging device and then plug the device's charger into the USB port. Finally, they can be equipped with built-in or external solar chargers and provide stable DC power.

Product Features


High conversion efficiency

Our products use high-efficiency solar cell chips, which can convert solar energy into electrical energy more efficiently and can be charged quickly in a short time.

Various interfaces
This product is equipped with a variety of different power interfaces, suitable for different device types, such as mobile phones, computers, tablets, etc.

Suitable for various outdoor environments
The Outdoor Foldable Solar Panel is suitable for various outdoor environments, including wild travel, camping, hiking, etc.

Easy to use
Installation of our products is simple, most models come with clear instructions and only take minutes to install. Secondly, once installed, it requires little maintenance and can provide continuous power for several hours.

How it works


① Open the solar power place the stand well, and try to shine sunlight vertically(90°) onto the solar panel


②Connect the device to the solar controller output port through the charging cable.


1). Details

Backside


Front side








2). Package

1 * 30 Watt solar panel

1 * Carabiners

1 * User manual

Warranty: 1 year

How to protect the folding solar bags?


● Store the panel in a protective carrying case when not in use to prevent scratches and damage.

● Keep the panel out of extreme temperatures and direct sunlight when not in use to prevent warping or melting.

● Clean the panel regularly with soft brush or damp cloth to keep it free of dirt and debris that can scratch or damage the surface.

● Use a cover or tarp to protect the panel from weather conditions when not in use.

● Handle the panel with care when folding and unfolding to prevent damage to the hinges or connections.

● Keep the panel away from sharp objects or anything that could puncture or tear the panel.

● Keep the panel away from moist, humid and salty environments

● Keep the panel away from corrosive materials or chemicals



Testing Criterion and Equipment


Test Conditions & Measuring Instrument Requirements

Test lighting intensity: 1000W/㎡ or 38,000 LUX

Unless otherwise specified, all tests shall be carried out under standard atmospheric conditions

Temperature: 25℃

Relative humidity: 10% ~ 90%

Air quality: AM1.5

The instrument accuracy of voltage measurement should be less than class 0.5 and 10 kΩ/V for resistance

The instrument accuracy of current measurement shall be no less than class 0.5.

The accuracy of the instrument for temperature measurement shall be no less than ±1℃

FAQ


1. Can the panel be used with a battery bank or charge controller?

Yes, foldable solar panels can be used with a battery bank or charge controller. A charge controller is an electronic device that regulates the voltage and current from the solar panel to the battery bank. It helps to prevent overcharging and over-discharging of the batteries, which can damage or shorten their lifespan.

When a solar panel is connected to a battery bank, the charge controller will ensure that the correct amount of power is going into the battery and prevent overcharging. It also prevents the battery bank from discharging through the solar panel during the night or when there is no sunlight.

2. What is the type and quality of the solar cells used in the panel?

Mono crystalline, efficiency rate is upto 21%
