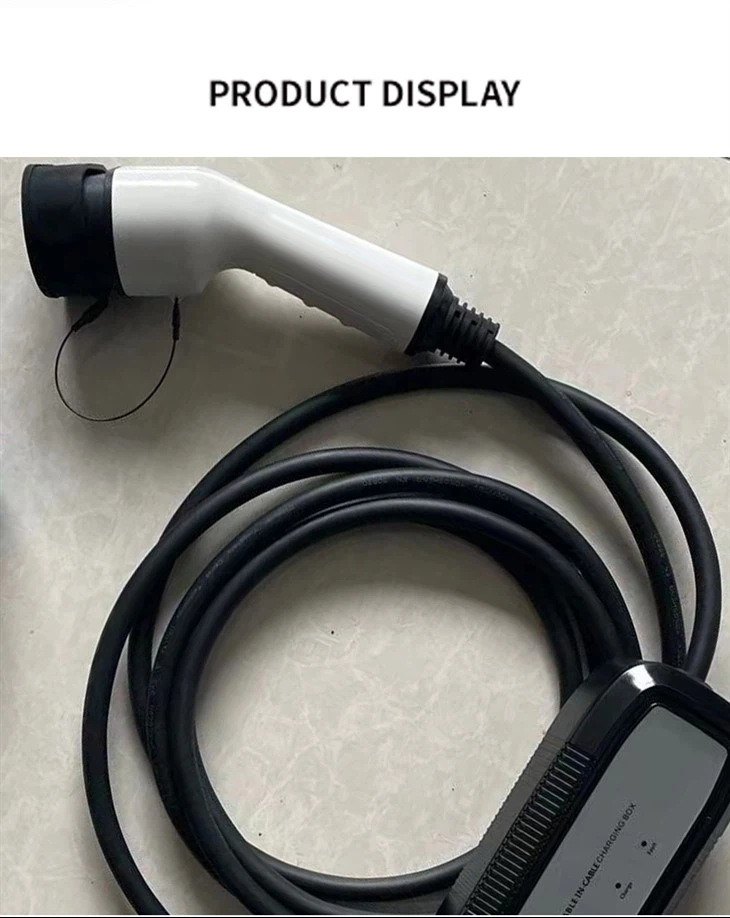

Indicator EV Charging Gun

Model: YLID-16A
Charging gun: LEC62196-2 Type 2 European standard (Optional)
Cable Length: 5 meters (ODM≥20pcs)
Product Weight: 2.6KG
Input: 220V
Output: 220V AC 16A
Rated Power: 3.5KW
Protection: Gun head: IP67 / Control box: IP54
Working temps: -30℃ - 120℃
Working Humidity: 5% - 95%
Cable: 3*2.5MM² + 0.75MM²
Housing Material: PC9330
Individual Package: 34CM*24.5CM*16CM

Indicator EV Charging Gun Product Description


Our product is a device for charging electric vehicles. It usually consists of a charging cable and a control unit that displays charging information and status. Secondly, The Indicator EV Charging Gun has a user-friendly interface and is designed to ensure that even non-technical people can use it without any difficulty. Its display is small and easy to read, providing real-time information on the charging process. Finally, our user interface also includes an intuitive system that makes it easy to control and monitor the charging process.

Feature

Smart charging
The Indicator EV Charging Gun have smart charging functions that can intelligently adjust the charging power according to the electric vehicle battery condition and input voltage to ensure a safe and stable charging process while extending battery life.

High security
Our products use DC charging technology, which is more stable and safer than traditional AC charging methods when charging. Moreover, this charging method can also effectively avoid the loss of battery capacity.

Strong protection
The shell of our product is made of high-strength ABS material and has good waterproof performance.

Portable
Our products can be used in homes, workplaces, public charging stations, and other places to provide a convenient charging experience for electric vehicles.


Product Parameters


Technical Data

Input: 80-265V AC 50Hz(1-p)

Charging plug: LEC62196-2 Type 2

Main plug: EU type / Industrial plug

[European standard 16A /32A plug]

Rated power: 3.5kW / 7kW
output:80-265V AC 16A / 32A

Number of phases: single phase

Contact resistance: max.0.5 m Ω

insulation resistance: >500m Ω(DC500V)

High voltage resistance: 2500V AC

Terminal temperature rise: <50k

Operating humidity: 5%-95%
noncondensing

Protection type: protection box IP55
charging gun head IP67

Executive standard: conform to IEC standard

Flame retardant grade: UL94 V-0

Plugging force during
coupling: 45n

Mechanical life: no load
plugging >10000 times

Operating temperature:
-30 ℃ -120℃

Material application: terminal copper alloy, silver-plated surface

Cable: 3*6mm²x0.75mm²

Housing material: pc9330

Cable length weight: 5m (3kg)

Connector type: IEC type2

Display mode: indicator light

Single packing specification:
41cm*41cm*9.5cm

Customization Instructions: from 5 meters

[more than 20 pieces can be customized]

product two.jpg

Detailed Photos


product three.jpg

product-900-466

How to use it?


Prepare the charging gun: Check that the charging gun is compatible with your electric vehicle, such as power and charging standards. Meanwhile, make sure the main plugs are compatible with local electricity standard, as the different area has different requirements.

Connect to the electric vehicle: Locate the charging port on your electric vehicle and connect the cable to the port.

Start charging: To initiate the charging process, you have to activate the charging gun and ensure that the connector is adequately inserted.

Monitor the charging process: Use the indicator lights code to know the information about the charging process. Each indicator light has been marked the means on the surface of the in-cable box.

Disconnect the charging gun: When the charging is complete, turn off the charging gun and safely disconnect the cable from the electric vehicle.

Meanings of Indicators


Fault ON-OFF Explanation: Red Fault Light shows according to Fault Codes (ON 0.5S,0FF 0.5S), then OFF (2S), and moves in a cycle.

16A Mode 2 IC- CPD

Serial Number

Charging Mode

Indicator State

Power

Charging

Fault




1

ladle Mode

ON

OFF

OFF

2

Connect, No Charging

ON-OFF(1S)

OFF

OFF

3

Charging

ON

ON-OFF(0.5S)

OFF

4

Charging Completed

ON

ON

OFF

5

Over-Temp Protection

ON

OFF

ON-OFF 1 Time

6

Low-Volt Protection

ON

OFF

ON-OFF 2 Times

7

Over-Volt Protection

ON

OFF

ON-OFF 3 Times

8

Ground Protection

ON

OFF

ON-OFF 4 Times

9

Over-Cur Protection(t)

ON

OFF

ON-OFF 5 Times

10

Over-Cur Protection(P)

ON

OFF

ON-OFF 6 Times

11

Leakage Protection

ON

OFF

ON-OFF 7 Times

12

Relay Fault

ON

OFF

ON-OFF 8 Times

13

Communication Failure

ON

OFF

ON-OFF 9 Times

FAQ


Q1.What is the certificate?
A: CE and FCC for all of our EV chargers, cable has UL certification. And we have a strict quality check before shipping to confirm the goods are well delivered to you.
Q2.What are your terms of payment?
A: Our payment terms require a 50% deposit via T/T upfront, and the remaining 50% to be paid prior to delivery. Rest assured, we will provide you with photos of the products and packages for your review before the final payment is made.

Q3. What are your incoterms of trading?
A: We mainly support EXW, FOB, CFR, and CIF. DAP, DDU, and DDP trade terms can also be provided.

Q4. How about your delivery time?
A: Generally, it will be sent within 3 working days after receiving your advance payment if there is enough stock. The exact delivery time depends on the items and quantity you ordered.
Q5. Can you produce an indicator EV charging gun according to the samples?
A: Yes, we provide samples of our EV charger and also can produce your samples or technical drawings. We can build the molds for your requirements.
