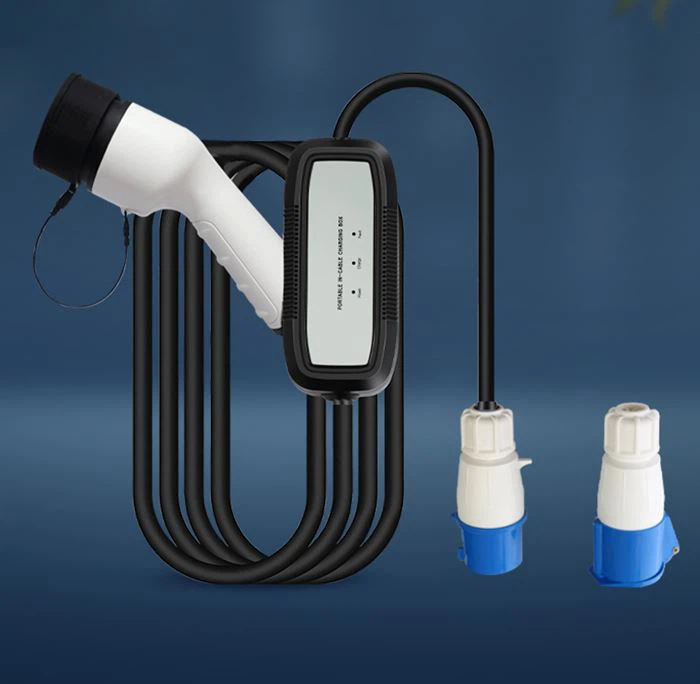

Type 2 Portable EV Charger

Product Name: EU Standard 32A 7KW EV Charger [Indicator]
Charging Head: LEC62196-2 Type2
Input: 220V
Output: 220V AC 32A
Rated Power: 7KW
Cable length: 5 meters [ODM≥20pcs]
Product weight: 4.2KG
Protection grade: Gun head: IP67/Controller box: IP54
Working temps: -30℃-120℃
Work Humidity: 5%-95%
Cable: 3*6MM²+0.75MM²
Housing Material: PC9330
Package Size: 41CM*41CM*9.5CM

Type 2 Portable EV Charger Description


A Type 2 Portable EV Charger is an electric vehicle charger that uses the Mennekes standard for charging electric vehicles. It is designed for use in Europe, and is the most common type of charger used in Europe. The Type 2 EV charger is a three / single-phase charger and is capable of providing up to 22 kW of power. It is also compatible with both AC and DC charging, allowing it to be used with a wide range of vehicles. The Type 2 EV charger also has a number of safety features, such as ground fault protection, over-voltage protection, and reverse polarity protection.

Type 2 Portable EV Charger.jpgA type 2 portable EV charging gun is a portable electric vehicle charging station that uses the Type 2 connector, which is the standard connector for most electric vehicles in Europe and some other countries. These chargers can be used to charge an electric vehicle's battery at a variety of locations, such as at home, at work, or while on the go. They typically have a maximum charging power of 7.4 kW.

Type 2 EV chargers standard looks similar to the GB/T standard. In fact, it is easy to distinguish, the European standard of the black part is hollow, and the national standard is the opposite.

Parameters

Meet the Standard

IEC62196

Insulation resistance

>10MΩ

Rated Current

32A

Working temperature

-40℃ - 150℃

Rated Voltage

220V

Working humidity

-40℃ - 80℃

Rated Power

7KW

Storage humidity

5% - 95% RH

Rated Frequency

50Hz / 60Hz

Degree of protection

IP67

 Why choose a Type 2 Portable EV Charger?


With the increasing users of electric vehicles, charging method is a unignoring problem. Generally, there are AC EV charging gun (Portable EV charger), AC charging pile and DC charging station 3 ways. So, why do we prefer portable EV charger?

1. Compatibility: Type 2 charging connectors are the standard in Europe and are used by many electric vehicle manufacturers, such as BMW, Mercedes, and Volkswagen. Therefore, a Type 2 EV charger gun is compatible with a wide range of electric vehicles.

2. Charging speed: Type 2 EV charger typically have a maximum charging power of 7.4 kW, which is faster than the slower Level 1 and Level 2 charging options. This means that the battery can be charged much faster, reducing the time it takes to charge the vehicle.

3. Safety: Type 2 EV charger guns are equipped with safety features such as ground fault protection and automatic shut-off to prevent fires and other hazards.

4. Portability: Type 2 EV chargers are portable, they are plug & play, and it can be used to charge an electric vehicle's battery at a variety of locations, such as at home, at work, or while on the go.

5. Cost-effective: EU standard portable EV charger is relatively cheaper than the other type of EV charger like level 3 (DC fast charger) which have a more complex infrastructure and are more expensive to install.

What is the difference between EU standard EV charger and others?


The main difference between EU standard EV chargers and others is the type of connector and the maximum charging power they offer.
1. Connector: AC EU standard EV charger guns use the Type 2 connector, which is the standard connector for most electric vehicles in Europe. Other countries, such as the United States, may use different connectors such as J1772 or Tesla's proprietary connector.
2. Charging power: AC EU standard EV charger guns typically have a maximum charging power of 7.4 kW, while other countries may have different power levels. For example, some US charging stations have a maximum power of 30 kW or more.
3. Charging method: EU standard EV charger guns uses alternating current (AC) to charge the battery, while other standard such as CHAdeMO or CCS (Combo) uses direct current (DC) to charge the battery, which is faster but more complex and expensive than AC charging.
4. Portability: EU standard portable EV charger guns are portable, which means that they can be used to charge an electric vehicle's battery at a variety of locations, such as at home, at work, or while on the go.
5. Standards and regulations: EU has a specific standard and regulations for portable EV charger guns, which must be met in order for a charger to be considered EU standard. These regulations ensure that the chargers are safe and reliable for use. Other countries may have different standards and regulations.

Features


1. Appearance: LEC62196-2 model of gun head, PC9330 Shell material and it`s protection grade is IP54, Cable is using TPU material with 3 * 2.5MM² + 0.75MM²; Terminal plug can be customized by clients unique requirements.
2. European Standard: H62 Brass nickel and silver plated high conductivity terminals of gun, Ergonomic design for comfortable grip protection rating IP67.
3. Clear display. External pressure resistance, waterproof and dustproof. The in-cable charging box is made by PC9330 material for the shell, protection grade is IP54. LED indicator shows the meaning of working status through “power, charge, fault” 3 lights.
4. Reliable quality cable: The external material of the cable uses TPU, which is more wear-resistant and does not deform; Cable core material no oxygen pure copper cable, reduce charging loss waterproof and fireproof. 3*6MM²+0.75MM² specification
5. Flame retardant, not easy to heat, charge more stable
6. Charging plug supports customization. Generally use XH-03 for 3.5kW, Industrial plug for 7kW.

Why Choose Us?


The seven hole European standard, Type 2 EV charger has following advantages:
1. Multiple protection: Thunder, Undervoltage, Leakage protection, Short circuit protection, Overcurrent protection
2. Plug & Play
3. Support ODM & OEM Customization
4. TPU Cable with UL cable certificate
5. Temperature control: It will automatically stop charging when temperature higher than 85℃, start charging once temperature lower than 60℃.
6. Material:

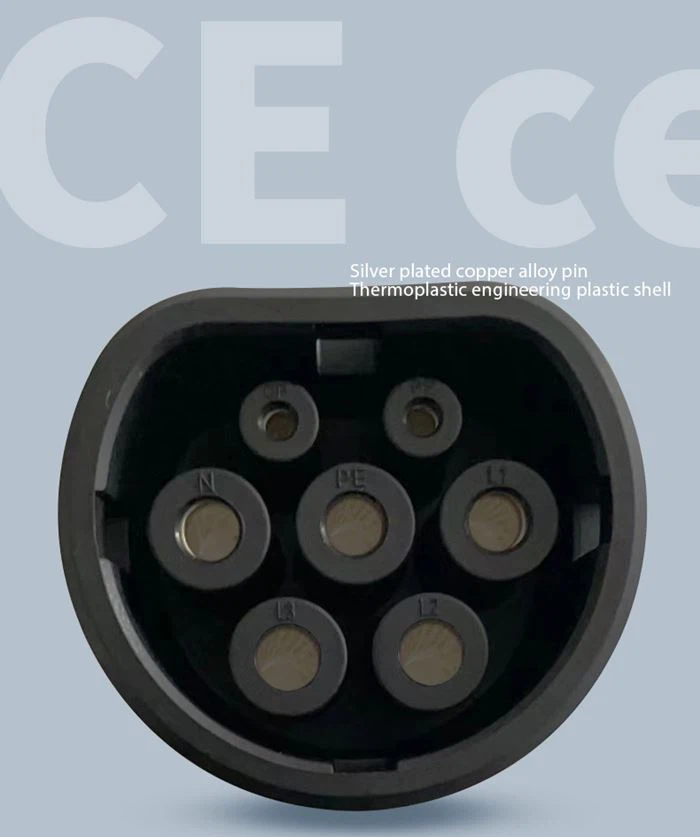

①Silver plated copper alloy pin; Thermoplastic engineering plastic shell

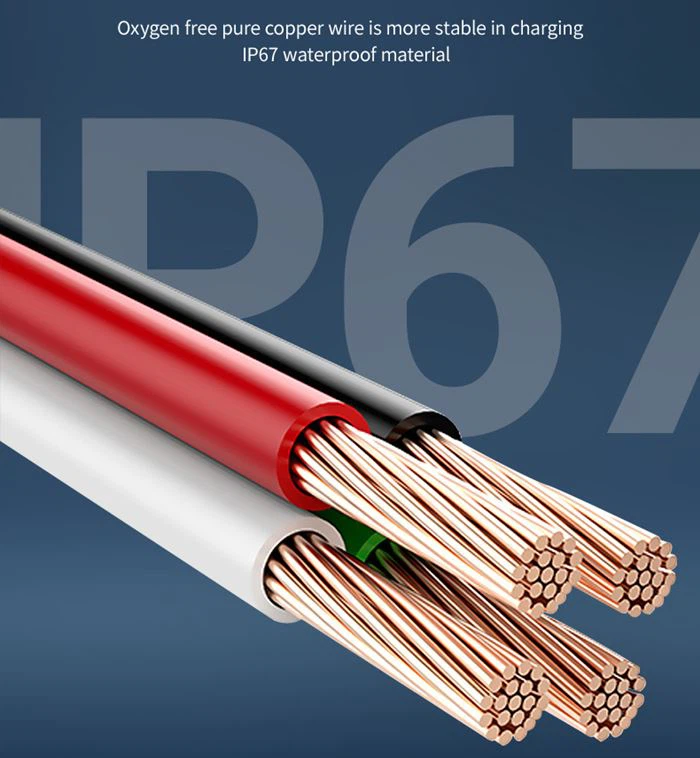

②Oxygen free pure copper wire is more stable in charging;

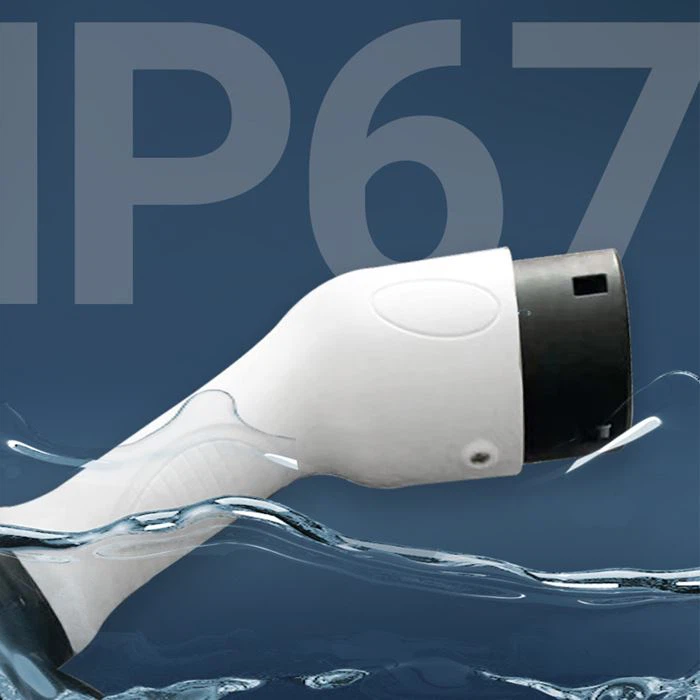

③The waterproof gun head adopts integrated forming technology with IP67 protection grade.
④Connector string is made by 304 stainless steel.

Contact us to get more information and your own branded Type 2 Portable EV Charger! Each bright spot is a work of sincerity!
