Reservation EV Charger

Reservation EV Charger

Fourth Gear Power: 8/10/13/16A
Fifth Gear Power: 8/10/13/16/32A
Rated Powder: 7kW
Rated charging current 16A
Rated input voltage 220V AC
Rated output voltage 220V AC
working temperature-30°C~+50°C
Storage temperature -40°C~+80°C
Degree of protection: IP66 (control box)

Reservation EV Charger Description


This Reservation EV Charger has a high appearance with indicator, which is a reservation type, you can choose 4th/5th gear type. Its indicators show 5 signals: Green Breath Light, Green meteor Charging Light, Charging Complete Always on Green Light, Always on Yellow light and Always on Red warning light, which helps you use it more convenient. You don't need to have a charging point at home to live with an electric vehicle.

Reservation EV Charger Features and Advantages:

① Vehicle regulation level protection

Double temperature control, Reservation charging, Plug and play, Light and convenient, Multi current matching, Safe conversion

product five.jpg

② Current adjustable speed optional

It has 4/5 current modes, and the fast charging or slow charging can be adjusted arbitrarily. It can be applied to various current demand models with good compatibility.

③Reserve peak staggering charging

You can make an appointment after 1-6 hours. Charge the vehicle and easily enjoy the low price at night, saving money and light-hearted.

Peak power consumption during the day, Low power consumption at night.

④ Dynamic screen display at a glance

Elegant high-definition LED display, dynamic and intuitive charging, real-time current. Real time voltage, real-time power, charged capacity, plug temperature controller temperature. Real time dynamic display of grounding status.

⑤ Five signal lights showing how it works.

Green Breath Light: Normal power on

Green meteor light: Charging

Always on Green: Charging complete

Always on Yellow: Charging appointment is in progress.

Always on Red: Fault warning

product six.jpg

Specifications and Parameters


AC EU STANDARD TYPE 2 RESERVATION EV CHARGER FOURTH GEAR CHARGING GUN

Charging standard

Type2(European Standard)

Rated Voltage

80V-265V

Rated current

32A

Rated Power

7KW

Power cord length

5m(Customized)

Product Weight

4KG

Operating temperature

-40℃ ~ +150℃

Working temperature

-40℃ ~ +80℃

Protection grade

Charging Gun Head: IP67; Control Box: IP54

Product size

Connector: 240mm*51mm*98mm; Control box: 225mm*75mm*67mm

Protection function

Anti-pressure protection; Overload protection; Undervoltage protection;

Lightning protection; Control box overheating protection; Electrostatic protection;

Over-voltage protection; Waterproof and dust-proof; Plug overheating protection; Overcurrent protection; Double leakage protection; Flame retardant protection;

Double ring protection

1). ELECTRICAL PERFORMANCE

Rated current:16A or 32A

Contact Resistance:0.5mΩ Max

Operation voltage:250V/480V(EU standard), 110V/240V(US Standard)

Terminal temperature rise: <50K

Insulation resistance:>500MΩ(DC500V)

Withstand voltage:2000V

2). MECHANICAL PROPERTIES

Mechanical life:no-load plug in/out >10000 times

Impact of external force:can afford 1M drop

Coupled insertion force:45N

3). ENVIRONMENTAL PERFORMANCE

Its operating temperature is-30°C-+ 50°C. It can be used normally in the ultra-high temperature environment of up to 100 degrees Celsius and can be charged normally in the extreme cold weather in the north.

When charging, the voltage and current system are stable enough and do not hurt the battery, which will extend battery life.

4). APPLIED MATERIALS

The case material of our EV charging gun is thermoplastic, flame retardant grade reaches UL94 V-0, and Terminal applying Copper alloy, silver plating.

5). CONTROL BOX FUNCTION

Multiple protection security guarantees your EV needs. The AC EV charger gun produced strictly abide by national standards. The In-cable box as the core part of EV chargers, has Leakage protection, Ground protection, Over load protection, Lightning protection, Over-voltage under-voltage protection, Over-temperature protection functions.

Cable Configuration


Type1(US)

Rated Current

Cable Specification

Remarks

16A

3X2.5MM²+1X0.75MM²TPU,Φ10.5/TPE,Φ13.5

Shell Color: Black/white optional

Cable Color: Black/Orange/Green optional

32A/40A

3X6MM²+1X0.75MM²TPU,Φ13/TPE,Φ16.3

Type2(EU)

Rated Current

Cable Specification

Remarks

16A Single phase

3X2.5MM²+1X0.75MM²TPU,Φ10.5/TPE,Φ13.5

Shell Color: Black/white optional

Cable Color: Black/Orange/Green optional

16A Three phase

5X2.5MM²+1X0.75MM²TPU,Φ13/TPE,Φ16.3

32A/40A Single phase

3X6MM²+1X0.75MM²TPU,Φ13/TPE,Φ16.3

32A/40A Three phase

5X6MM²+1X0.75MM²TPU,Φ16.3

Details



product one.jpg

Cable


Using the national standard of pure copper wire gauge cable

specifications 3*6mm²+1*0.75mm², charging stability, insulation layer

through the body using high-quality TPE material, safe and odorless.

Gun Head


Gun head pin is made of pure copper + silver plating process, the

gun head is made of high flame retardant high-strength nylon material,

the shell is using high-strength PC material, and flame retardant

meets UL94-V0 level.


product ten.jpg


product nine.jpg

product eleven.jpg

product seven.jpg

product two.jpg

product three.jpg

product eight.jpg

Package


Normally, we pack our reservation EV charger in brown cartons. If you want to show your logo, can we also provide customization to meet your unique requirements, but it requires for amount of quantity. Call us for more interest!

product four.jpg

Lead Time:

1-20pcs: 3days

21-100pcs: 15days

101-200pcs: 20days

>200pcs: To be negotiated

About Us


Our company is located in Xi'An city, mainly provide solar products, such as PV modules, solar generator, household power system and renewable products including electric car chargers, PV carport, etc. You`re able to find reservation EV charger, indicator EV charger, EV charging cable, and EV wallbox here!

IP67 & TPU material compare to other.jpg

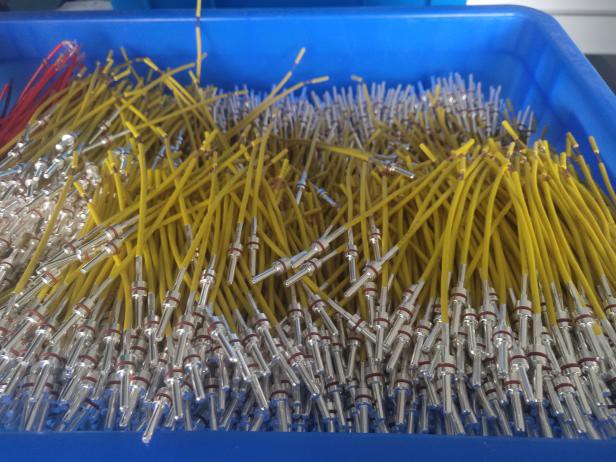

Standard Components Show.jpegHigh quality wire copper.jpgproduct.jpg
IP67 & TPU material compare to otheStandard Components ShowHigh quality wire copperMultiple EV chargers and EV wallbox are available
Support OEM.jpgStrict QC.jpgTesting before shipment.jpgproduct.jpg
Support OEMStrict QCTesting before shipmentMultiple EV chargers and EV wallbox are available

FAQ


1. Can I have a sample first?

A: Sure, we are glad to provide samples for you to check the quality.

2. What is your MOQ? Can I order less quantity to test my market?

A: Generally MOQ is 500pcs. If you are doing distribution in local market, we also provide less quantity to support you. Just don`t hesitate to contact.

3. How`s your quality?

A: We have a strict QC department to check the goods before shipping. Using new material and better design compared to the bad ones in the market.

4. How to get my own EV chargers?

A:First, Choose Type 1 or Type 2 you need

Then, check the voltage and suitable socket plug

Next, start chatting with your requirements, like quantity/ country/ style/ incoterm/ ..., we`ll reply to you soon with professional solution and best price!
