LiFePO4 Battery Generator

Model: Jupiter series J-10
Battery: 537.6Wh LiFePO4
AC Power: 300W Pure sine wave Inverter
DC Power: 2*3A 5V USB 2*5A 12V Circular Interface
PV Charger: MPPT 18A
AC Charger: 14.4V 7A
Charging Method: By PV / AC charger
Mainframe Size: 345×157×246mm
Working Temperature: -5℃~50℃
Working Humidity: 5%~93%, No condensation
Keeping Temperature: -20℃~70℃
Keeping Humidity: 5%~93%, No condensation
Protection grade: IP20
Packing: Product: 1PCS/CTN, 10.3KGS

LiFePO4 Battery Generator Description


Jupiter series LiFePO4 Battery Generator is a multi-function solar storage energy system, combining functions of inverter, MPPT solar charger controller, Lithium iron phosphate battery ,solar charger and battery charger to offer uninterruptible power support with portable size. The comprehensive LCD display offers user-configurable and easy-accessible button operation.

This series has 4 models J-10/ J-20/ J-30/ J-50. And J-10/ J-20/ J-30 is the updated version of GP1000/ GP2000/ GP3000, and listed globally in September of 2022. Compare to the old version, it`s much more lightweight. And exchanged the display screen to LCD touch screen. Battery usage visualization. Example as follows in GP1000.

product

Highlights


Jupite series is a multi-function solar energy storage system, combining functions of inverter, MPPT solar charger controller, Lithium iron phosphate battery ,solar charger and battery charger to offer uninterruptible power support with portable size. The comprehensive LCD display offers user-configurable and easy-accessible button operation.

● Original SEMD (intelligent energy management and distribution) technology, unique MPPT (solar maximum power tracking) technology, intelligent charging control technology, energy control switch technology;

● Equipped with 3.5-inch HD touch screen, Fault code display;

● Supports synchronized charging while discharging;

● Combining PV power, Grid power, and battery power source to supply continuous power;

● Can provide the power to the load without battery;

● Plug & Play;

● Supports GOGOPAY and Angaza various payment mode

product

Technical Parameters


Solar Generator Technical Specification

Product Series

Jupiter series AC/DC generation system

Model NO

J-10

J-20

J-30

Module Capacity

PV Module Type

polycrystal

polycrystal

polycrystal

PV Module Capacity

280Wp*1

280Wp*2

380Wp*2

Open Circuit Voltage (V)

36.7V

36.7V

36.7V

Maximum Power Voltage (V)

30.6V

30.6V

30.6V

Maximum Power Current (A)

9.15A

9.15A

9.15A

Maximum system voltage (V)

1000V

1000V

1000V

Battery Capacity

Battery Type

LiFePO4 Battery

LiFePO4 Battery

LiFePO4 Battery

Battery Specification

12V 40Ah

12V 80Ah

12V 120Ah

Battery Working Voltage/V

10~14V

10~14V

10~14V

Battery Cycle Times(<80%)

≧3000 times

≧3000 times

≧3000 times

AC Charger

Maximum Charge Current

5A 24V

6A 24V

8A 24V

Charging input Voltage

220V

220V

220V

Frequency

50Hz

50Hz

50Hz

PV Controller

Control Type

MPPT

MPPT

MPPT

Maximum Charge Current

12A

24A

36A

Charge conversion efficiency

≧92%

≧92%

≧92%

UPS Function

Auto Switch time

0ms

0ms

0ms

AC Output

Rated Output Voltage/V

220V

220V

220V

Rated Output Frequency/Hz

50Hz

50Hz

50Hz

Rated Output Power/W

200W

400W

800W

Maximum Output Power/W

300W

500W

1000W

Instantaneous Maximum Power/W

400W

800W

1600W

Battery Undervoltage Protection

≦10.5V Protect,

≧12V Recover

≦10.5V Protect,

≧12V Recover

≦10.5V Protect,

≧12V Recover

Battery Overvoltage Protection

≧15.2V Protect,

≦13.4V Recover

≧15.2V Protect,

≦13.4V Recover

≧15.2V Protect,

≦13.4V Recover

Cooling Type

air cooling

air cooling

air cooling

Transfer Efficiency

≧90%

≧90%

≧90%

DC Output

5V DC, Interface

USB 5V×2

USB Maximum Current 3A

USB 5V×2

USB Maximum Current 3A

USB 5V×2

USB Maximum Current 3A

12V DC, Interface

Circle hole×2

Circle Hole Maximum Current 5A

Circle hole×2

Circle Hole Maximum Current 5A

Circle hole×2

Circle Hole Maximum Current 5A

Above Sea Level

0m~4000m

>2000m, each 100m higher, the temperature will get 0.5℃ lower

Product Size

Screen interaction

3.5”TFT, Resolution480×320

Touch Screen Control

Host Size

315*156*233mm

445*185*325mm

445*185*325mm

Host Weight

9.5kg

20kg

22.5kg

Host Packing Size

405×215×290mm

535×244×382mm

535×244×382mm

Host Packing Weight

10.5kg

16.5kg

17.5kg

As you can see from the datasheet above, all the LiFePO4 Battery Generator models are smaller and lightweight than old version (GP1000/ GP2000/ GP3000). That is easy to carry outside, put into car by yourself without pressure.

Details


Screen

3.5-inch high-definition touch

screen, easy to operate

product

Paygo System

Built-in PAYGO/Angaza

PAYGO, reduce payment pressure and use early

Battery

New high-energy battery with up to 3000 discharge cycles

MPPT

A new generation of MPPT, the control performance great improved, and the power generation is increased by 30%

Charge

Built-in grid charger and PV charger,

more convenient to use

Efficiency

The efficiency is significantly improved, the charging is greatly accelerated, and the efficiency is more stable

Power

Ultra-high power, output power up

to350W

Exterior

Weighting only 9.6kg, it is lighter and easier to carry or move

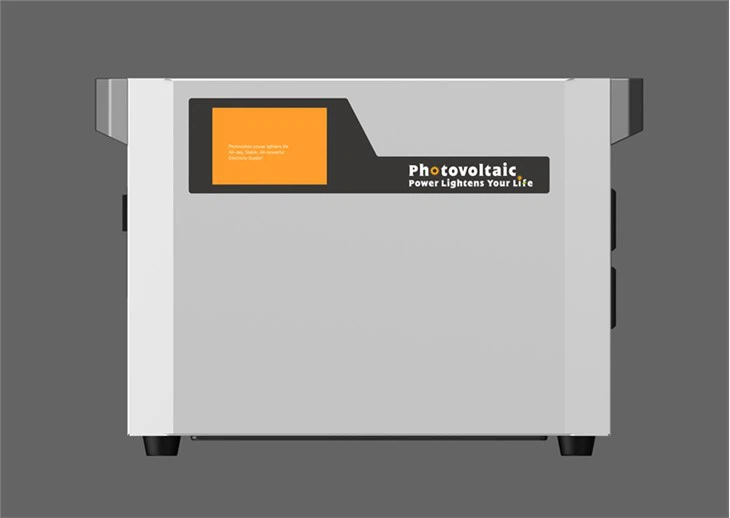

1. Appearance

J-10 has two appearances of orange and silver, J-10 adopts sheet metal shell, which is sturdy and sturdy. Handles on both sides for easy transport. The overall design is simple and beautiful, with a sense of technology.

2. Input and output interfaces

J-10 is equipped with a large 3.5-inch touch screen for easy operation. There are two input ports on the left, they are the grid input interface and the PV input interface; The right side is the power switch, output interface area and a Debug interface. Switches include one host switch and one AC switch. The output interface area includes two 12V round holes, Two 5VUSB ports and two 220V AC output interfaces.

3. Operation introduction

Press and hold the power button of the host to turn it on, there are 6 icons on the main interface, respectively input information, battery information, load information, PAYGO information, mode selection and setting.

(1) Press the input button to enter the input information display interface. The PV or GRID input information will be displayed in this interface, it will display four information of input voltage, input current, input power and the current charging capacity.

(2) Press the battery button to enter the battery information display interface. The battery information will be displayed on this interface. It will display four information: battery voltage, battery current, remaining battery capacity and current battery temperature.

(3) Press the load button to enter the load information display interface. The load information will be displayed on this interface. It will display the load voltage, load current, load power and the remaining usage time to support the existing load.

(4) Press the PAYG button to enter the PAYGO information display interface. J-10 supports our self-developed PAYGO and ANGAZA PAYGO. In this interface, the remaining usage time of the device, serial number and factory ID will be displayed. In this interface, you can enter the PAYGO code to extend the use time.

(5) Press the mode button to enter the mode selection interface. J-10 has three modes: UPS mode, economy mode and custom mode

UPS mode: when the remaining power≤90%, it can be charged with grid power

ECO mode: when the remaining power≤20%, it can be charged with grid power.

(6) When the remaining power is ≥ 40%, only photovoltaic charging can be used.

Custom mode: You can customize the starting conditions of mains charging.

Press the return button to return to the main interface. Press the Setup button to the setup interface.

(7) Press the User Setting button to the User Setting interface. In this interface, you can choose to set the time, language and view the SN number.

You can choose to enter the developer mode in the settings (password required)

You can choose to view system information in the settings, Debug information can be viewed here. You can also view some standard information. The last one is the fault code information, some faults during the operation of the equipment will be recorded here.

If you do not operate for a long time, the touch screen will enter the standby interface. The standby interface will display time, charging information, battery information, load information, remaining usage time and working mode.

FAQ


What size or capacity of LiFePO4 Battery Generator do I need?

A: First, you should know how much current and power you need to keep the essential electronics running. And then, make sure how many hours you may need the solar generator to run before recharge it. J-10 is suitable for a short trip.

How long can you run this battery generator?

A: It depends on the charging devices. As for a 7W smartphone, it can be charged over 70 times. Supporting a 500W devices charging one hour.

Can I charge it while discharging?

A: Yes, this portable power station supports synchronized charging while discharging.

Can I overload the Battery Generator?

A: Please do not overload the battery. For any type of GP series new energy generator products, it is necessary to use the corresponding electrical equipment according to the technical specifications, and it is strictly forbidden to overload the high-power electrical equipment that exceeds the output power of the inverter. Although the product has a built-in protection system, using a high-power load that exceeds the output power for a long time and multiple times will cause multiple shocks, which may cause damage to the product or electrical appliances, and may even cause a short circuit and cause more serious consequences. Product failure and other losses caused by overloaded use of equipment do not enjoy free warranty services.
